The spring properties are determined now and the design calculation results as safety factors on torsional stresses are displayed in wizard page:

Compression Spring Design Dialog

Spring Diagram

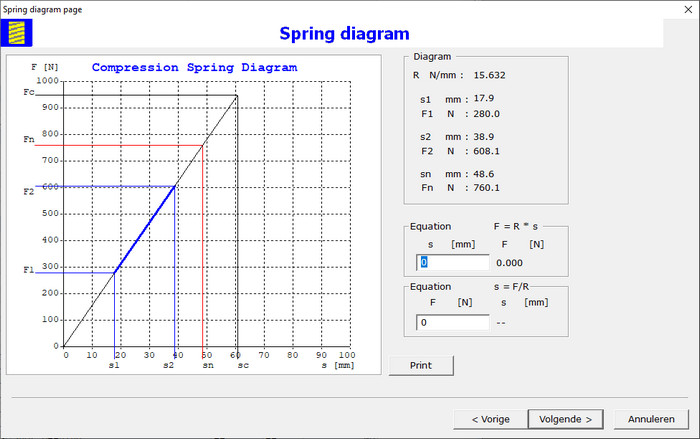

Spring diagram is displayed in wizard page:

Spring Diagram Dialog

The equation of spring line F = R * s is determined. Get with this equation the axial force F for a given axial stroke s. With the inverse equation s = F/R the expected stroke s is to determine to obtain a given axial load force F. The maximum permissible deflection sn and maximum permissible force Fn is determined. The spring diagram is printed with a click of the mouse on the command button Print.

Go to the next page to see the Goodman Diagram for the given number of load cycles.
