Rectangle Method

The composite section is to divide in rectangles

The rectangles are to define with two diagonal vertex points. Input with dialog box as displayed below:

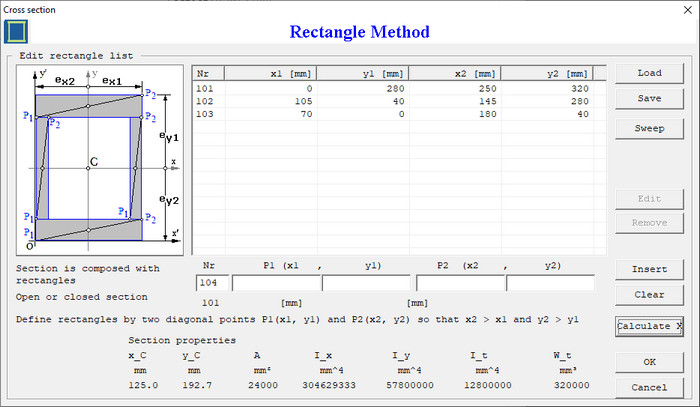

Rectangles List Dialog Box

Calculation of Section Properties

Ouput on screen as follows:

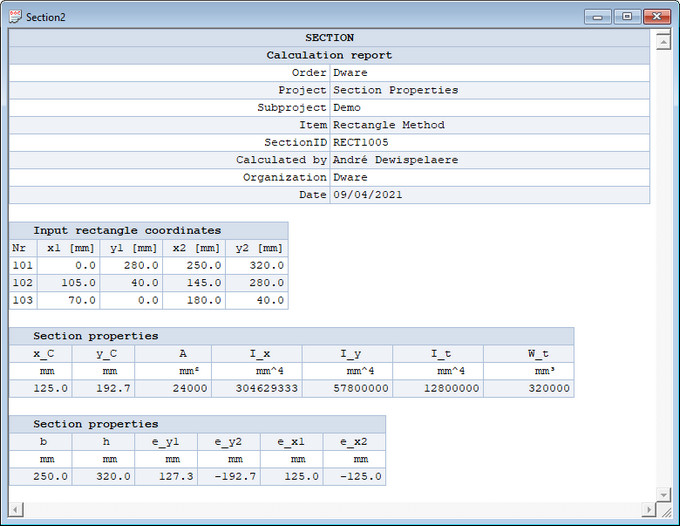

Section Properties Output Rectangles Method
