Load Carrying Capacity of Timing Belt Transmission

Knowing the type of the timing belt, load being transmitted and the operating conditions, calculate the safety factor on rupture.

Selection of Timing Belt

The application loads the list of timing belts or the list you have created before. The timing belt for which the calcuation is to be made is to select as an item in the list:

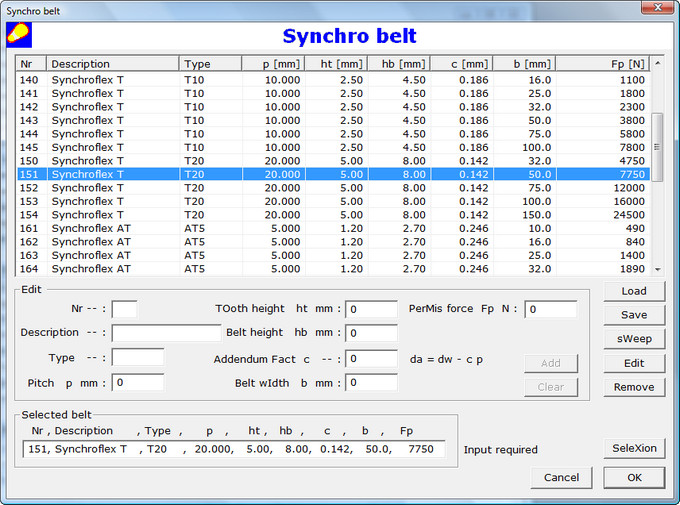

Timing Belt Selection Dialog Box

Transmission Specifications

Input of transmission specifications with next dialog box:

Timing Belt Verification Transmission Specifications Dialog Box

The required input is being seen in above dialog box.

In a next dialog input of load being transmitted and application factor KA. The verification calculation or load carrying capacity can start now. Output of calculation in next web page.

Go to next web page to see the output of a verification calculation.
