Output Verification Calculation

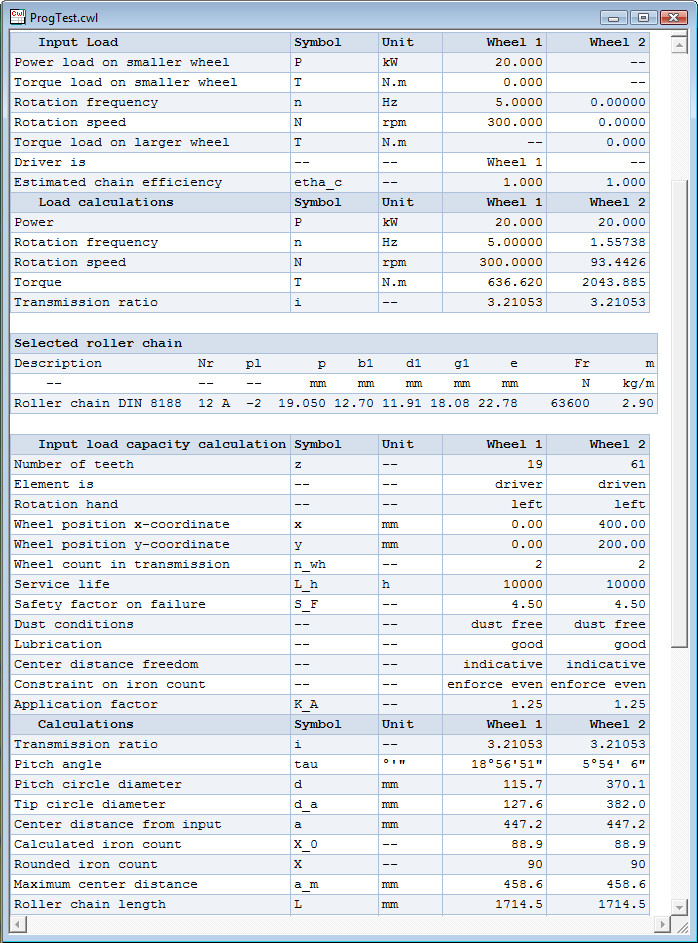

Output in window as in next example:

Chain Wheel Output Verification Calculation

Click here on Calculation Report Roller Chain Ttransmission to see a complete verification calculation report of a roller chain transmission in a blank target page,

Calculation of Wheel Dimensions

Calculation of chain wheels and the measurement dimensions according the standard DIN 8196. Generation of the NC code for contour milling operation with Fanuc 6MB numerical control if a form milling cutter or hob for chain wheel is not available in the workshop.

This is the end page of ChainWheel. Go to the Products List to read about another product.
