Verification Calculation Roller Chain Transmission

The safety factor is being calulated about which a roller chain can transmit a given load under given operating conditions.

Selection of Roller Chain

The application loads the list of standard roller chains or the list you have created for your own use. The roller chain is to select in this list with next wizard page:

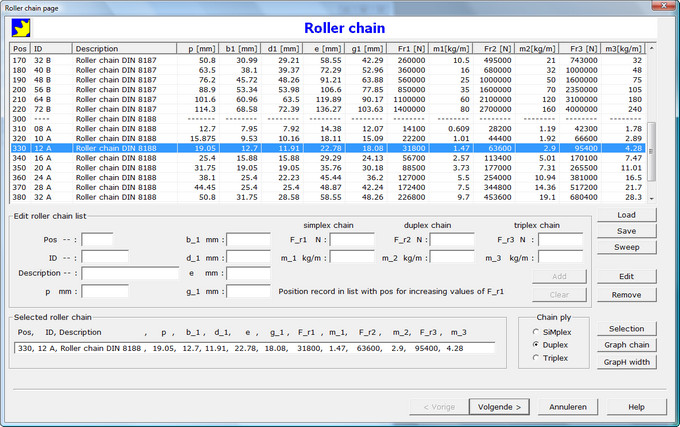

Chain Wheel Verification Roller Chain Selection Dialog Box

Transmission Specifications

Input of transmission specifications with next wizard page:

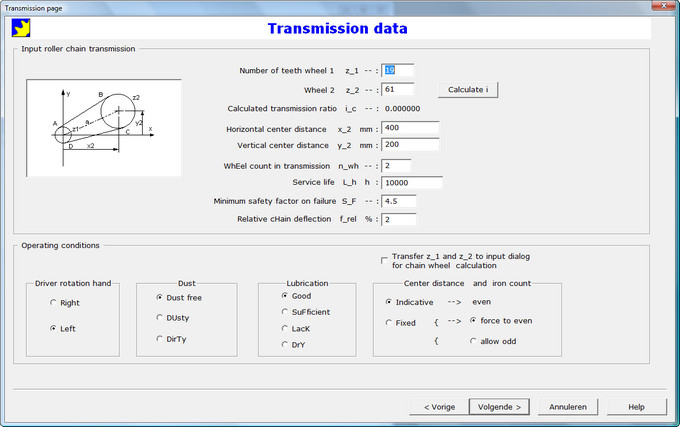

Chain Wheel Verification Transmission Specifications Dialog Box

The required input can be seen in the figure above.

In a next wizard page input application factor KA. Input of load with a dialog box. The verification calculation can start now. Output of calculation in next web page.

Go to next web page to see the output from verification calculation.
