Selection of material for part

The material for the part is to select from a list in a dialog box. With this dialog box, the user can also update the list or make a new material list and store it on disk.

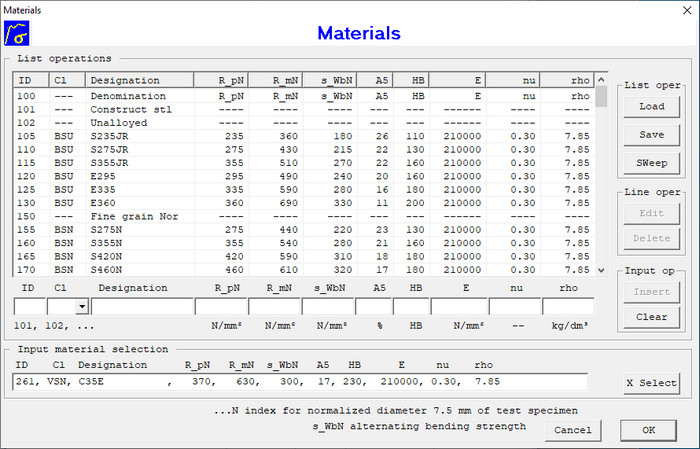

Materials Dialog

Input of part size

Input of part size with following dialog box:

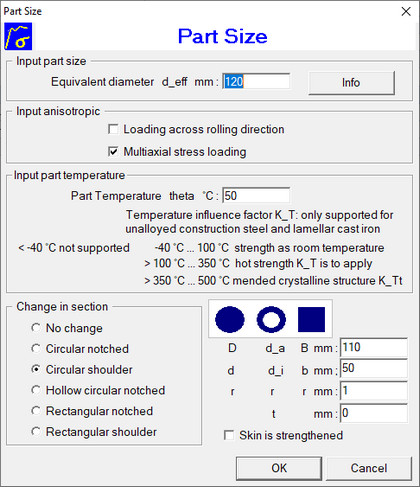

Part Size Dialog

Also input of rolling direction, multiaxial load, part temperature, change in section and if skin is hardened for the calculation of static and dynamic strength.

See next page for input and calculation of static strength.
