Input for static strength calculation

With following dialog box:

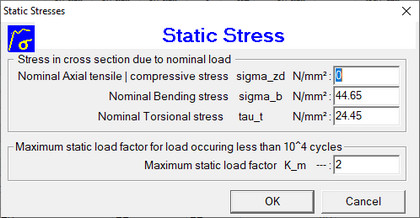

Maximum Static Stress

Input of the axial -, bending - and torsional stress in the cross section caused by the nominal load and input of the maximum static load factor Km.

Result of static strength calculation

Result of calculation is displayed in the output window. The notation of the text book Niemann-Winter-Höhn is being used.

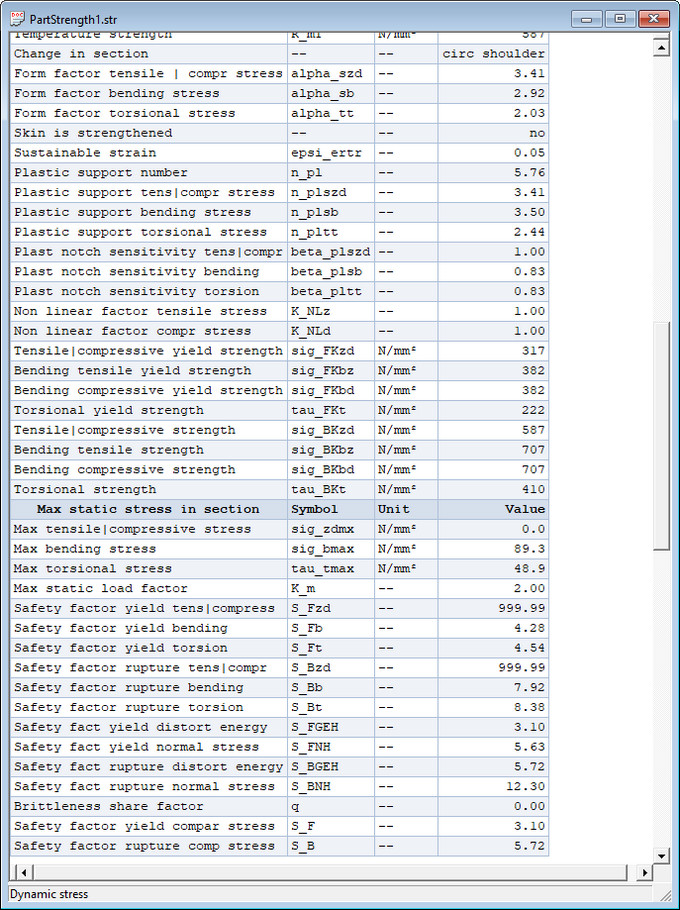

Part Strength Results

Calculation report can be exported in a Html file. See further dynamic strength calculation.

See next page for input and calculation of part dynamic strength.
