Design Specifications

Input of design specifications with dialog box:

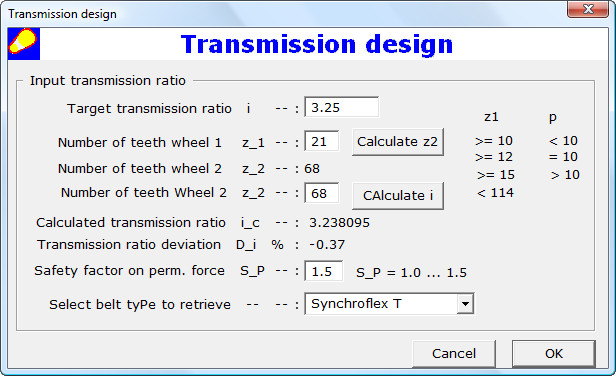

Timing Belt Design Specifications Dialog Box

See above figure which input is required. Note that the type of timing belt to retrieve is to select from a drop down list box.

Input load and application factor KA with two successive dialog boxes.

The application retrieves a timing belt from the loaded timing belt list which can transmit the load. The minimum and maximum belt length are determined.

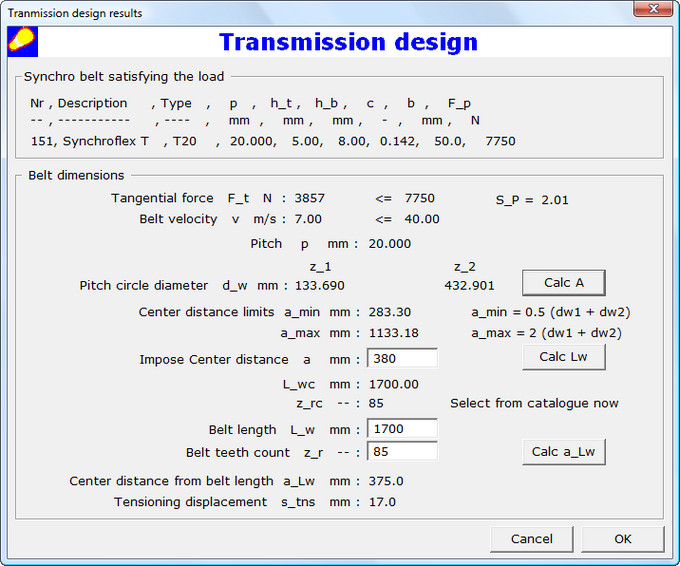

Retrieve Timing Belt Dialog Box

Input choosen center distance and choosen belt length with number of teeth in belt. Belt center distance and tensioning displacement is calculated.
