Materials for Gear Couplings

The application provides a dialog box for management of material records for gear couplings. This dialog box serves also for selection of materials for shaft and hub part.

Torque Rating

as in next dialog:

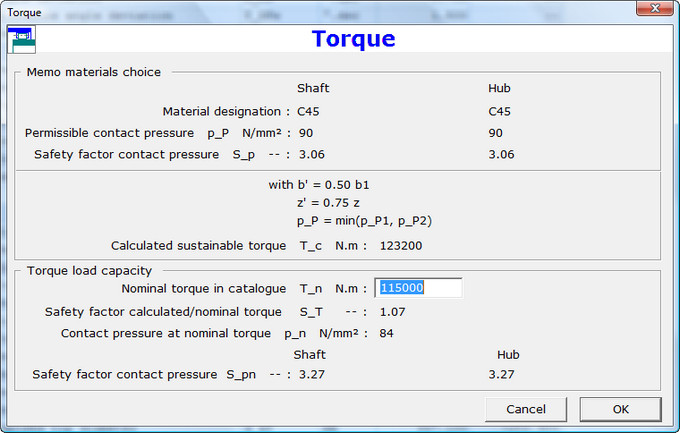

Torque rating Dialog

Calculation of transmittable torque and safety factor on contact pressure. Input of nominal torque as taken from a catalogue and calculation of safety factor against calculated sustainable torque. Calculation of safety factors on contact pressure for both shaft and hub parts.

Calculation Report

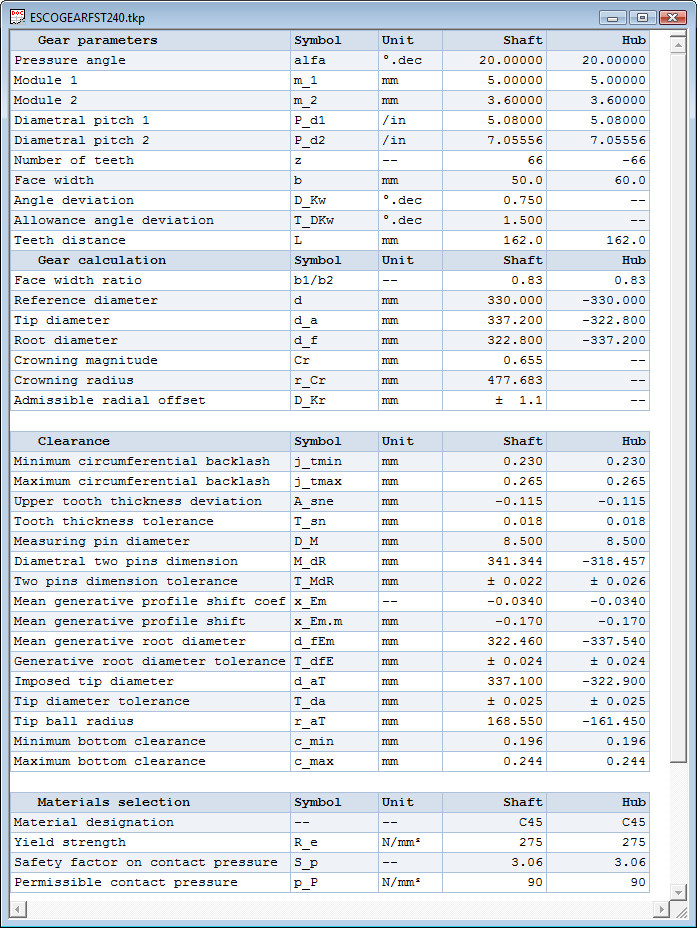

Calculation report in output window:

Calculation Report

Click here on Calculation Report to have a look at a complete calculation report in a blank target page.
