Calculation of Geometry

Input with next dialog box:

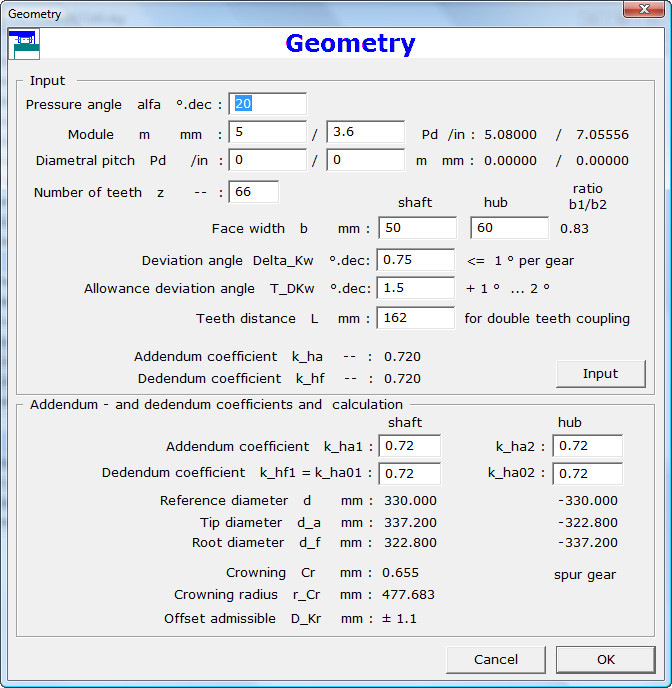

Calculation of Geometry Dialog

Determination of addendum and dedendum coefficients and tip and root diameters as shown in figure above.

Gear Measurement

Input of the requested minimum and maximum transverse backlash, with dialog:

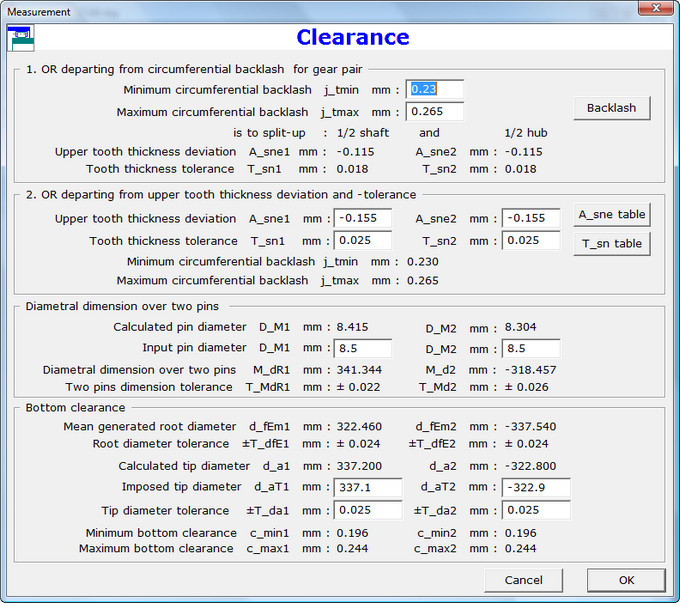

Clearance and Gear Measurement Dialog

Determination of the upper tooth thickness deviation and thickness tolerance. Calculation of measuring pin diameter. Determination of bottom clearance.

Go to next web page for the torque rating.
